STAINLESS STEEL for construction & architecture

STAINLESS STEEL (NIRO) is becoming more and more popular in the construction and architecture sector both for exterior and interior design! On the one hand, the outstanding technological and functional properties of STAINLESS STEEL result in highest cost-effectiveness with regard to minimal maintenance costs. On the other hand, STAINLESS STEEL convinces because of its high level of attractiveness and its timeless aesthetics.

Our STAINLESS STEEL basic product range for construction & architecture is made up of STAINLESS STEEL bollards (barrier posts), bicycle park systems and waste bins. We also provide frames and signposting. A flexible, customer-specific adaptation of these standard products is possible within a short time.

We also offer production of STAINLESS STEEL – special constructions.

Below, you will find a compact overview of our STAINLESS STEEL Construction & Architecture product range. You can request detailed documentation under Download where you will also find our current construction & architecture folder. The below listed products also include tender documents. All construction & architecture products are also available with powder-coated finish!

Tender documents



A selection of our reference objects is available here.

Galerie

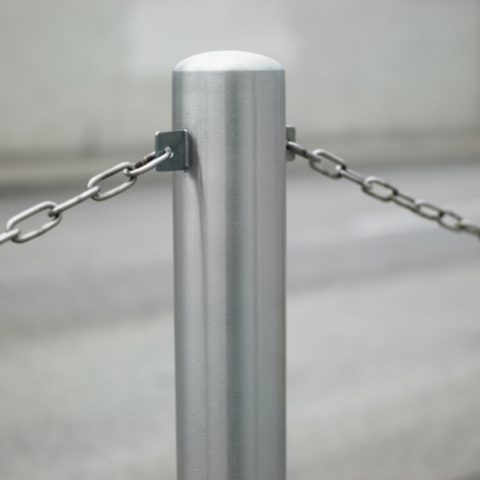

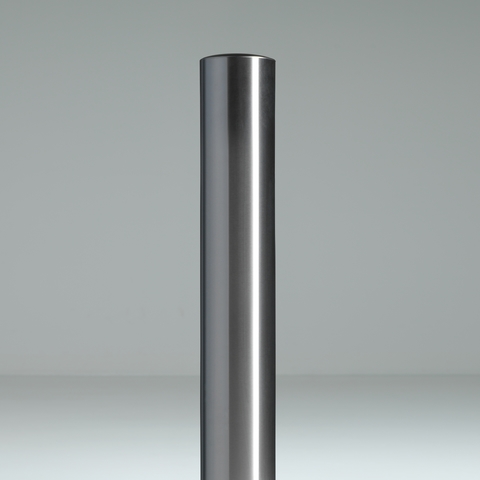

STAINLESS STEEL bollard ROUND Basic design



  • Ø 60 to 154 mm – Special diameters and heights possible anytime
  • Standard surface height 900 mm
  • with/without chain
  • Surface K220 polished
  • Extensive fastening options

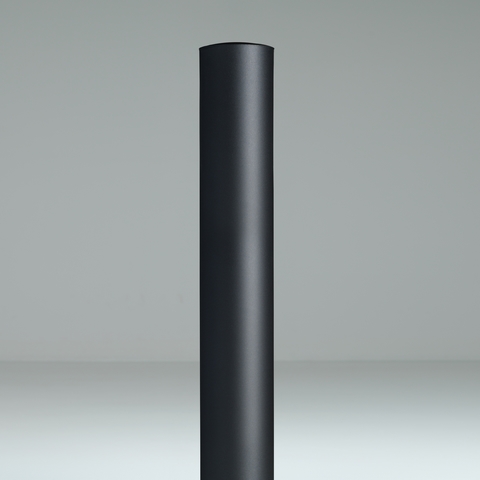

  • All bollards also available with powder-coating

Tender documents

Our bollards can be used as certified fall protection acc. to ÖNORM EN 1991-1-1:2011 and ÖNORM B 1991-1-1:2011 if needed



STAINLESS STEEL bollard ROUND Light design



  • Individual opening geometry
  • Individual lighting colour
  • LED illumination

Tender documents



STAINLESS STEEL bollard ROUND Logo design



  • Individual logo/symbol geometry
  • Individual lighting colour
  • LED illumination

Tender documents

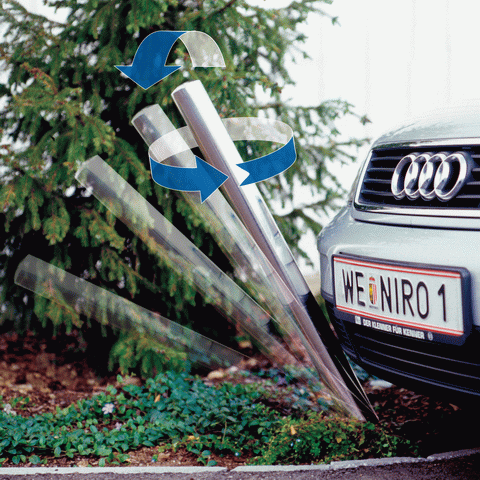

STAINLESS STEEL  360°  TILT  bollard



  • Tiltable and self-righting
  • Ø 76 mm, 89 mm, 104 mm, 129 mm
  • ideal for dangerous areas (roundabouts)

Tender documents



STAINLESS STEEL TILT parking bollard ROUND



  • Tiltable and self-righting
  • Ø 60 mm
  • Standard surface height 600 mm
  • The best solution to mark your parking space

Tender documents

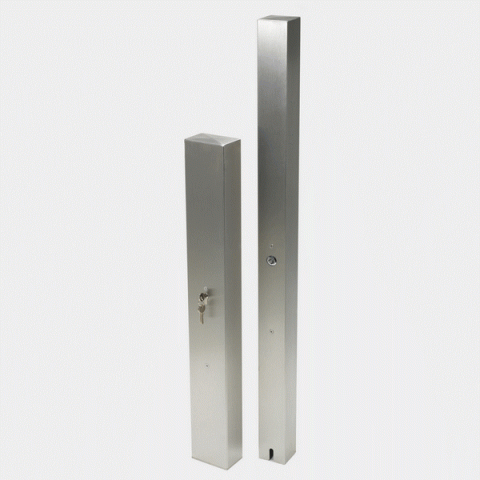

STAINLESS STEEL bollard ANGULAR Basis design



  • Cross section 60 x 60 to 120 x 80 mm – Special cross section and height possible any time
  • Standard surface height 900 mm
  • with/without chain
  • lockable/tiltable
  • with locking function
  • Surface K220 polished
  • Extensive fastening options

Tender documents



STAINLESS STEEL bollard ANGULAR Light design



  • Individual opening geometry
  • Individual lighting colour
  • LED illumination

Tender documents

STAINLESS STEEL bollard ANGULAR Logo design



  • Individual logo/symbol geometry
  • Individual lighting colour
  • LED illumination


Tender documents



STAINLESS STEEL TILT parking bollard ANGULAR



  • Tiltable and self-righting
  • Cross section 60 x 60 mm
  • Standard surface height 600 mm
  • The best solution to mark your parking space

Tender documents



STAINLESS STEEL bollard system MOBILE



  • Mobile bollard system with cylindrical base plinth (approx. 30kg)
  • Opening geometry to mount chain
  • Standard surface height 900 mm
  • LED illumination

Tender documents

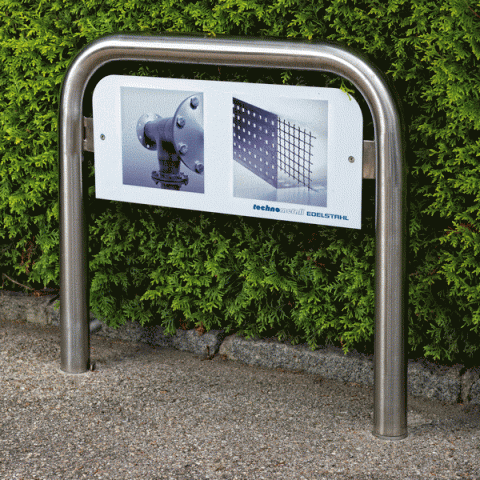

STAINLESS STEEL parking lot bracket



  • With/without sign
  • Bent round pipe version or with 90° mitre
  • Ø 42 to 60 mm
  • Shaped pipe version with 90° mitre
  • Width 1000 to 2000 mm
  • Surface K220 polished
  • All parking lot brackets also available with powder-coating

Tender documents

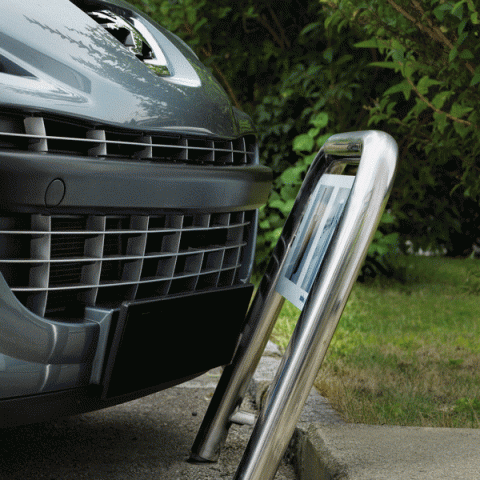

STAINLESS STEEL TILT parking lot bracket



  • With/without sign
  • Bent round pipe version or with 90° mitre
  • Ø 42 to 60 mm
  • Shaped pipe version with 90° mitre
  • Width 1000 to 2000 mm
  • Surface K220 polished
  • ideal for frequented parking lots

Tender documents



STAINLESS STEEL bike park stand ROUND



  • Bent round pipe version
  • Ø 34 to 60 mm
  • Width 1000 to 2000 mm
  • Standard surface height 850 mm
  • Surface K220 polished
  • All bike stands also available with powder-coating

Tender documents



STAINLESS STEEL bike park stand ROUND MITRE



  • Round pipe version with 90° mitre
  • Ø 34 to 60 mm
  • Width 1000 to 2000 mm
  • Standard surface height 850 mm
  • Surface K220 polished
  • All bike stands also available with powder-coating

Tender documents



STAINLESS STEEL bike park stand ANGULAR



  • Shaped pipe version with 90° mitre
  • Cross-section 40 x 40 to 60 x 40 mm
  • Width 1000 to 2000 mm
  • Standard surface height 850 mm
  • Surface K220 polished

Tender documents

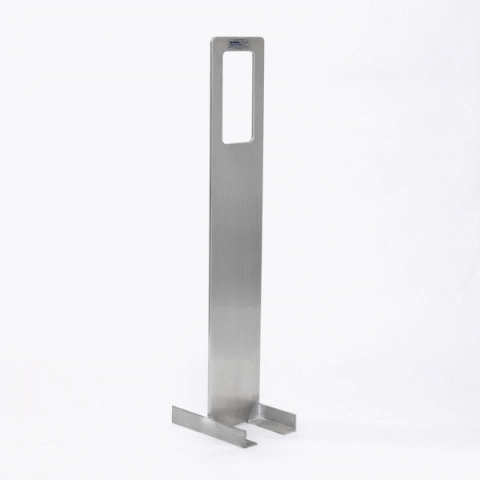

STAINLESS STEEL bike park stand SQUARE



  • Dimensions 1100 x 200 x 10 mm
  • With opening 250 x 120 mm
  • and chamfered edges
  • Surface K220 polished

Tender documents



STAINLEES STEEL bike park FOLDING BRACKET



  • Mobile version with rail
  • Width 800 mm
  • Standard surface height 800 mm
  • To screw onto existing base
  • Surface K220 polished

Tender documents

STAINLESS STEEL bike park SPIRAL



  • Length 950 or 1700 mm
  • With/without stone side parts
  • Surface: blasted

Tender documents



STAINLESS STEEL bike park FLAT BAR MOBILE



  • Mobile version with trapeze bar 900 x 700 mm
  • On shaped pipe frame 50 x 20 mm screwed or welded
  • To screw on or set up on existing base
  • with 3 or with 4 bars
  • Surface K220 polished

Tender documents



STAINLESS STEEL waste bin ROUND



  • in combination with bollard
  • Casing of STAINLESS STEEL perforated sheet
  • removable 30 litre interior container
  • All waste containers also available with powder-coating
  • Lock with triangular wrench key

Tender documents



STAINLESS STEEL waste bin LIGHT ROUND



  • in combination with bollard
  • Casing made of STAINLESS STEEL sheet metal Simple version without interior container Content approx. 30 litres
  • All waste containers also available with power-coating
  • Lock with triangular wrench key

Tender documents



STAINLESS STEEL waste bin ANGULAR



  • in combination with bollard
  • Casing made of STAINLESS STEEL perforated sheet
  • Removable 30 litres interior container
  • Lock with triangular wrench key

Tender documents



STAINLESS STEEL waste bin LIGHT ANGULAR



  • in combination with bollard
  • Casing made of STAINLESS STEEL sheet
  • Simple version without interior container
  • Content approx. 30 litres
  • All waste containers also available with powder-coating
  • Lock with triangular wrench key

Tender documents

STAINLESS STEEL signage system ROUND



  • Signage system with three signs
  • Surface height 1800 mm
  • Total height 2100 mm
  • Surface K220 polished
  • Special designs as well as larger purchase quantities upon inquiry

Tender documents



STAINLESS STEEL signage system ANGULAR



  • Signage system with three signs
  • Surface height 1800 mm
  • Total height 2100 mm
  • Surface K220 polished
  • Special designs as well as larger purchase quantities upon inquiry

Tender documents



Perforated & decoration sheets



  • Different hole patterns (Round, square and slotted holes)
  • Different formats
  • Polished or unpolished surface
  • Profile edgings in different shapes
  • Wire mesh
  • Insect screens
  • Wavy grate
  • Weld grid

STAINLESS STEEL hole, structure & decorative panel
STAINLESS STEEL grating, fabric & mesh grating



STAINLESS STEEL railing system

technometall-consult-0020

Rust free STAINLESS STEEL railings – round pipes (diameter 42.4 mm), or square pipes (40 x 40 mm), hand rails and fittings are flexibly connected by a simple push-fit and bonding system. NIROSTICK offers enormous cost savings in assembly and variable design options

more …
