Pre-assembled system parts

  • 955

    Picket railing consisting of
    pipe 42.4 mm H = 1200 mm
    (2 posts) incl. 2 floor plates,
    4 saddles
    with fastening screws and 2 end caps
    Picket pipe 42.4 mm, L = 1000 mm
    Filling rods 16 x 1.5 mm
    Self-assembly set, delivered in individual parts

  • E955

    Picket railing
    consisting of shaped pipe 40 x 40 x 2 mm
    H = 1200 mm (2 posts) incl. 2 floor plates,
    4 saddles with fastening screws and 2 end caps
    Picket pipe 40 x 40 x 2 mm, L = 1000 mm
    Filling rods 16 x 1.5 mm
    Self-assembly set, delivered in individual parts

  • 970U

    French balcony rail consisting of pipe
    42.4 mm
    incl. 2 rod saddles, 4 saddles, incl. fastening screws
    4 wall mounts without fastening screws
    4 end caps No.0141
    Hand rail 42.4 mm, L = 1100 mm
    Picket pipe 42.4 mm, L = 1000 mm
    Filling rods 16 x 1.5 mm
    Wall distance approx. 70 mm
    Total height approx. 1020 mm
    Total width approx. 1100 mm
    Self-assembly set, delivered in individual parts

  • 980U & 981U

    980U Hand rail made of pipe
    42.4 x 2.0 mm, L= 1500 mm
    incl. 3 wall mounts and 2 end caps

    981U Hand rail made of pipe
    42.4 x 2.0 mm, L= 2000 mm
    incl. 3 wall mounts and 2 end caps

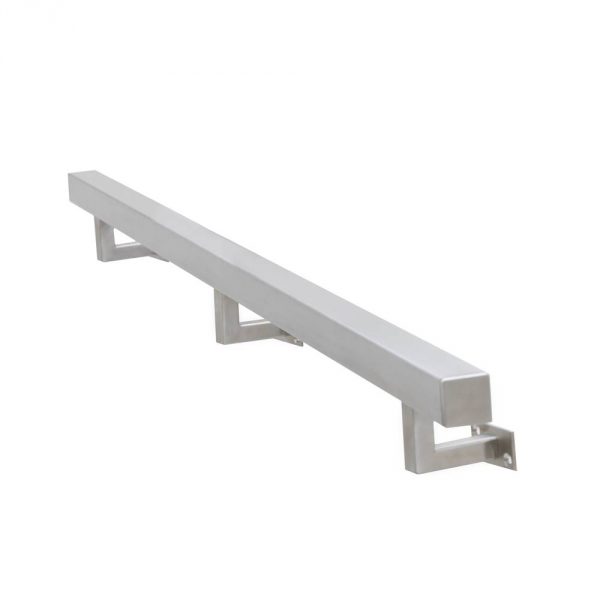

  • E980U & E981U

    E980U Hand rail made of shaped
    pipe 40 x 40 x 2.0 mm incl. 3 wall
    mounts and 2 end caps

    E081U Hand rail made of shaped
    pipe 40 x 40 x 2.0 mm
    incl. 3 wall mounts and 2 end caps

  • H980U & H981U

    H980U Wood hand rail beech/oak
    42.4 mm, L = 1500 mm incl. 3 wall
    mounts and 2 end caps

    H981U Wood hand rail beech/oak
    42.4 mm, L = 2000 mm
    incl. 3 wall mounts and 2 end caps

  • 990U

    Post for floor mounting*
    made of pipe 42,4 x 2,0 mm, L = 900 mm
    incl. flange plate and cover rosette
    incl. MB thread/insert nut
    incl. 2 glass holder No. 267 and seal
    pre-assembled, posts open at the top

    Please indicate glass thickness!

  • 991U

    Post for floor mounting*
    made of pipe 42.4 x 2.0 mm, L = 900 mm
    incl. flange plate and cover rosette
    incl. M8 thread/insert nut
    incl. 2 glass holders No. 267 and seal
    pre-assembled, posts open at the top

    Please indicate glass thickness!

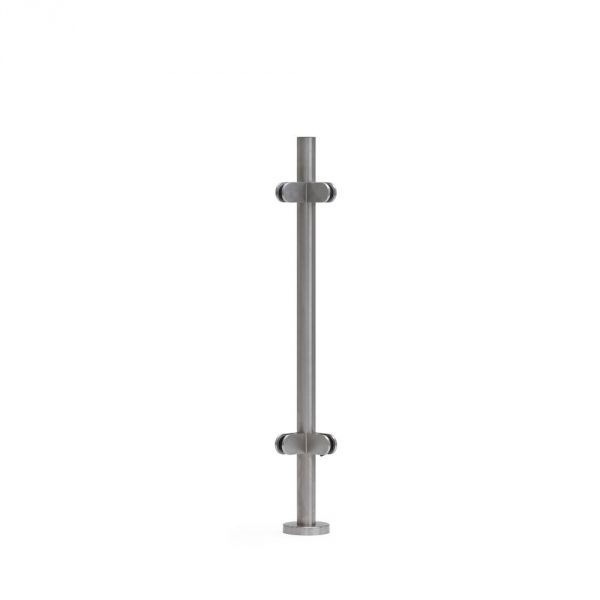

  • 992U

    Post 90° for floor mounting*
    made of pipe 42.4 x 2.0 mm, L = 900 mm
    incl. flange plate and cover rosette
    incl. M8 thread/insert nut
    incl. 4 glass holders No. 267 and seal
    pre-assembled, posts open at top

    Please indicate glass thickness!

  • 993U

    Post 180° for floor mounting*
    made of pipe 42.4 x 2.0 mm, L = 900 mm
    incl. flange plate and cover rosette
    incl. M8 thread/insert nut
    incl. 4 glass holders No. 267 and seal
    pre-assembled, posts open at top

    Please indicate glass thickness!

  • E990U

    Post for floor mounting*
    made of shaped pipe 40 x 40 x 2.0 mm, L = 900 mm
    incl. flange plate and cover rosette
    incl. M8 thread/insert nut
    incl. 2 glass holders No. E263U and seal
    pre-assembled, posts open at the top

    Please indicate glass thickness!

  • E991U

    Post for floor mounting*
    made of shaped pipe 40 x 40 x 2.0 mm, L = 900 mm
    incl. flange plate and cover rosette
    incl. M8 thread/insert nut
    incl. 2 glass holders No. E263U and seal
    pre-assembled, posts open at the top

    Please indicate glass thickness!

  • E992U

    Post 90° for floor mounting*
    made of shaped pipe 40 x 40 x 2.0 mm, L = 900 mm
    incl. flange plate and cover rosette
    incl. M8 thread/insert nut
    incl. 4 glass holders No. E263U and seal
    pre-assembled, posts open at the top

    Please indicate glass thickness!

  • E993U

    Post 180° for floor mounting*
    made of shaped pipe 40 x 40 x 2.0 mm, L= 900 mm
    incl. flange plate and cover rosette
    incl. M8 thread/insert nut
    incl. 4 glass holders No. E263U and seal
    pre-assembled, posts open at the top

    Please indicate glass thickness!

  • 1000U

    Post for floor mounting*
    made of pipe 42. x 2.0 mm, L= 900 mm
    incl. flange plate and cover rosette
    incl. M5 thread/insert nut
    incl. 4 round steel holders No. E311U
    pre-assembled, posts open at the top

    Please indicate glass thickness!

*The posts can be combined with the following items:

In connection with a hand rail: 230U, 190S, 210U, 191S, 233U, 234U, 237S (round pipe) and E231U, E232U, E233U, E236U (shaped pipe)
When closing with end caps: 141U, 155U (round pipe) and E141U (shaped pipe)
